| Quantity: | |
|---|---|
FCR
FST
FST009

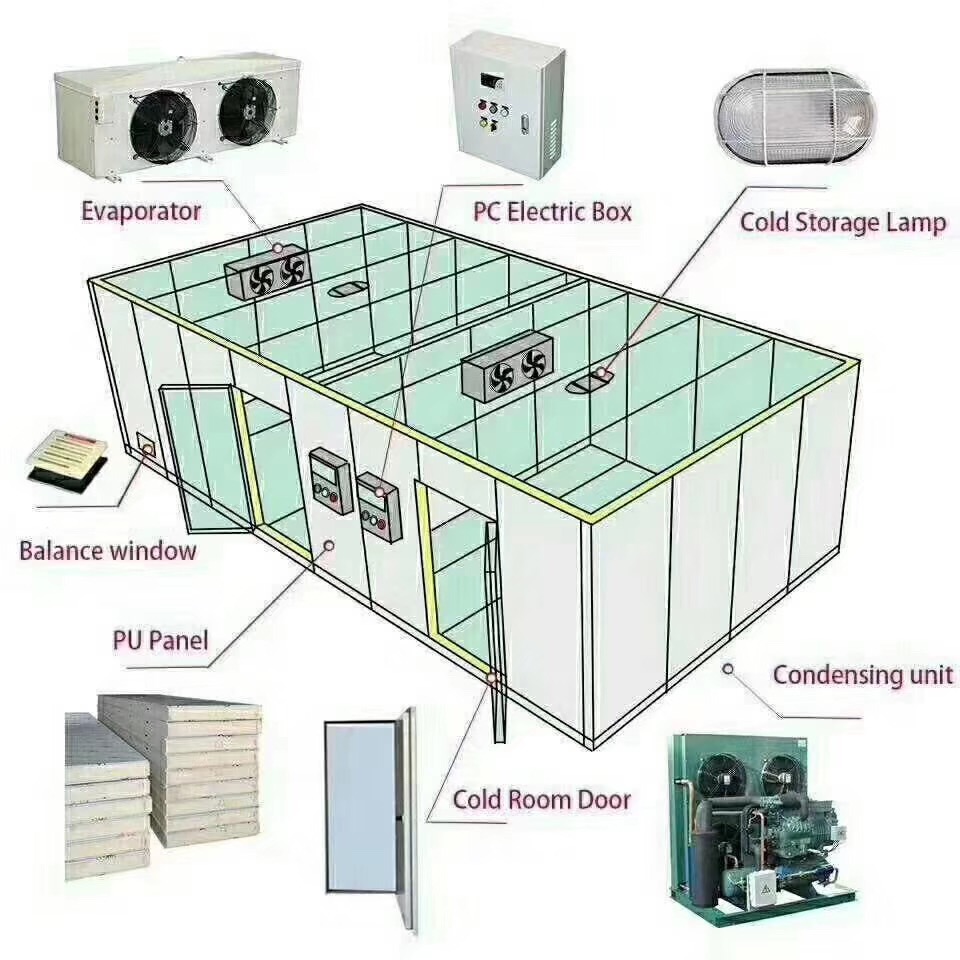

cold room Specification
1. compressor
2. refrigeration Parts
3. PU insulation sandwich panel board
4.air cooler
Condenser
5. Feature of freezer cold rooms ,refrigerated chiller and freezer ,cold room /chiller room, cold storage room, cooler room,Cold storage /cold store/ walk in freezer room / cold room, cold storage room, chiller room, cooling room:
Polyurethane insulation board design for cold room, the main steel structure to facilitate construction. Portable sliding doors, and out of cold storage more convenient, easy to operate.
Water defrosting evaporator defrost faster, save operating costs.
Cold storage door with anti-shock protection, an increase of reliability.
projects.
(1) Temperature range: -40ºC~+20ºC are all available.
(2) Size: Customize.
(3) Functions: fresh-keeping, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.
(4) Fully automatic control system.
(5)Easy to install and dismantle
(6) Temperature Alarm
(7) Data Logger
(8)PLC electric control ( LG,SIMENS, OMRON..famous parts)
(9) Refrigerant:R404A or other
Components:

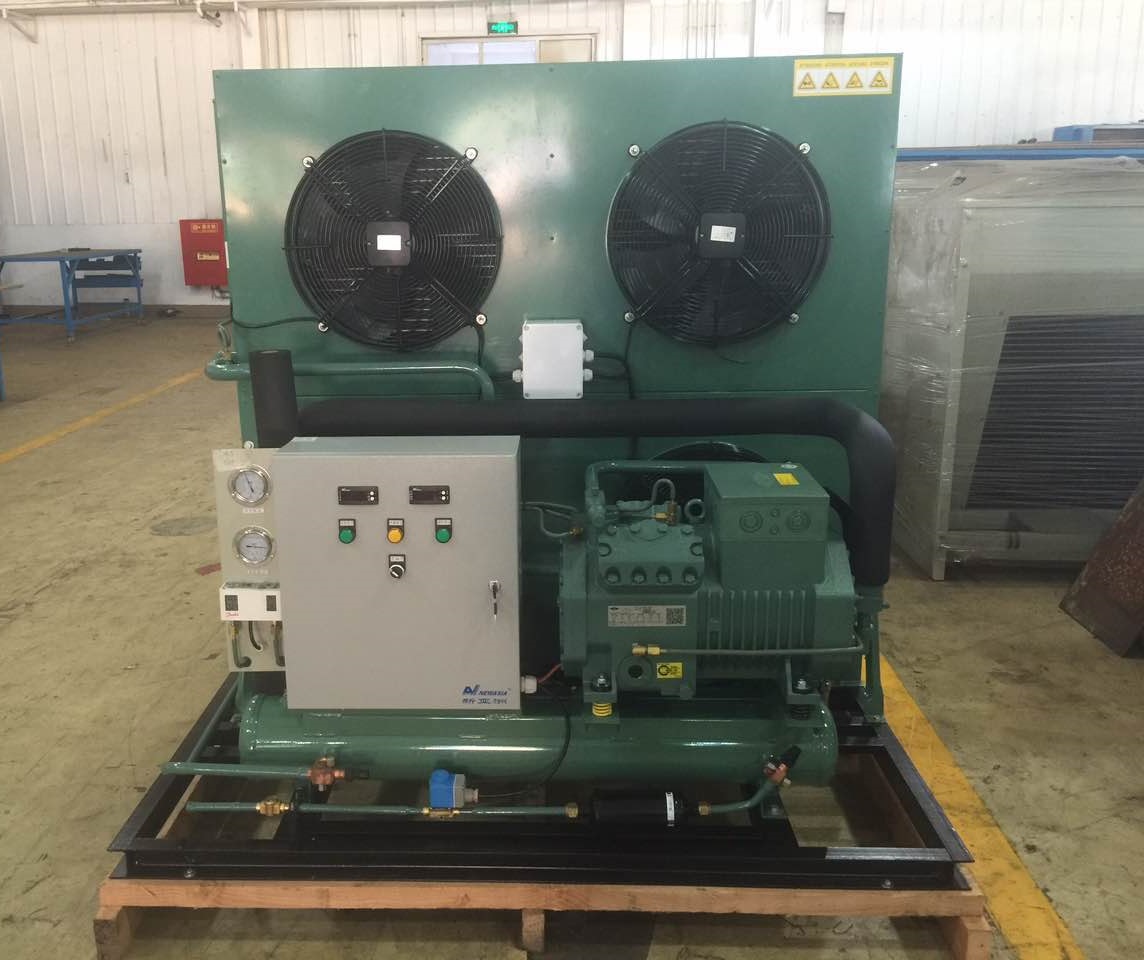

(1) Condensing unit: Germany Bitzer, America Copeland, Italy Frascold ,China brand Etc.
(2) Evaporator: FST air-cooler.
(3) Insulation Panel: PU,
(4) Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG,Schneider
Application of cold room:
Food (meat,pork, beaf,chicken freezer room, vegetable, fruit, dairy, drink chiller room ( cooler room...), Medicine, Chemical, Electronics...

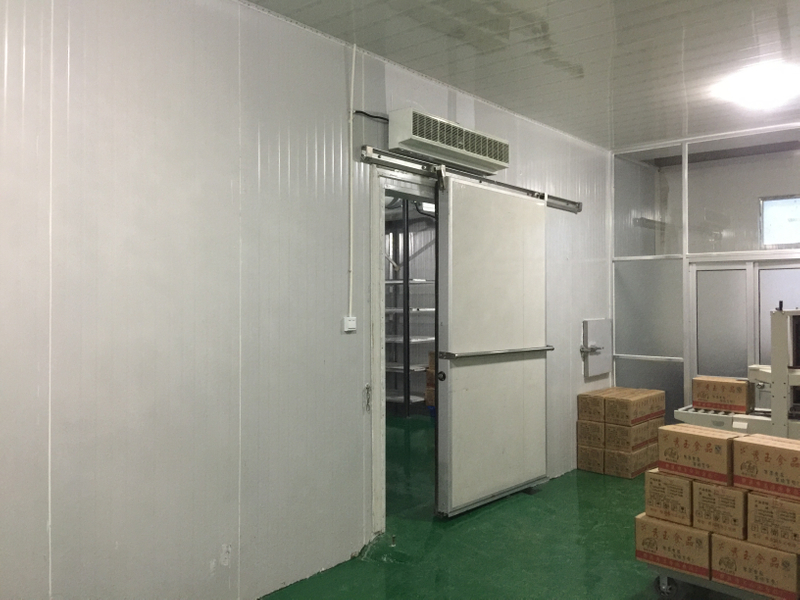

Doors:
1).Swing door and sliding door for choice.
2).Swing door:manual opened,automatic,etc.
3).Door board made with special pressing technology PU material.
4).Door frame:color steel or stainless steel.
5).Surface material:color steel or stainless steel with protecting film.
Panels:
Cold room insulation panel:use 100%polyurethane insulation panel,density about 36~42kg/m3,with gasket,with flame retardant, fire-resistant panel thickness:50mm~200mm, standard width of panel is 960mm
Evaporator type
Air Cooled Type | Ceiling type DL (5-20℃）DD（-5~+5 ℃）DJ（-18~-20℃） |
Aluminum shelving | Customize -18 ℃ or -35℃ |
Evaporator Cooled Type | Evaporator Condenser DJS (-30~-40℃) |
Room size type
Room size | Mini | Small | Middle | Big |
volume range | 200m⊃3; | 200~1000m⊃3; | 1000~5000m⊃3; | >5000m⊃3; |
temperature table for reference
cold storage goods | temperature range |
processing room | 10℃ |
fruit, vegetable, dry food | 0~-5℃ |
medicine, cake, pastry, chemical material | 0~-5℃ |
ice storage room | -5~-10℃ |
fish, meat storage | -18~-25℃ |
deep freezer. | -25C~-35℃ |
compressor type and condenser
compressor type | bitzer(Germany) | Frascold (Italy) | Copeland (US) | China brand |
condenser | air cooled | water cooled | Evaporator |
Panels information
office Foam panel | 50mm thickness |
processing room 10C | 50mm/ 75mm PU |
-5℃ | 75mm/ 100mm PU |
-18℃ | 100mm/ 150mm PU |
-25C/ -35℃ | 150mm/200mm PU |
panel steel cover | SS, GI, aluminum etc |
