FSW500
FST
FST-500
Frozen food: Chicken cut 4 pieces
Inter/out temperature :+5/-15℃
capacity ; 500krgs hrs.
refrigerant : Freon .
Voltages: 440/3ph 60 hz.
Fusheng double screw compressor SDL330E 1 set

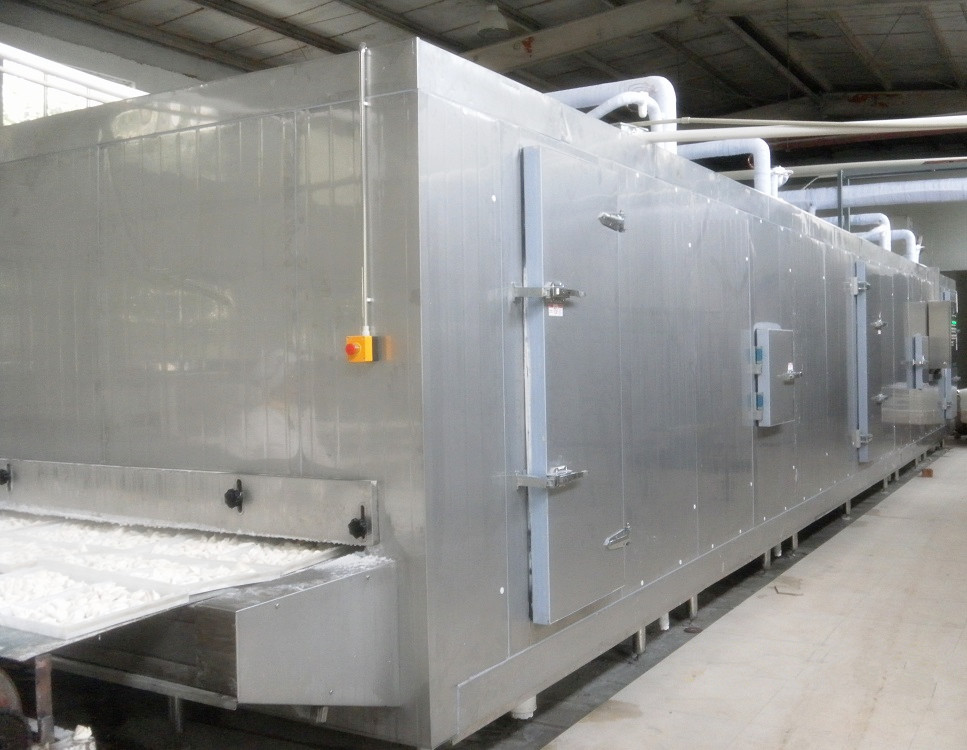

FSW500 TUNNEL FREEZER TECHNICAL PARAMETERS
Item | FSW500（ Frozen hamburger） | |
Product | Frozen hamburger | |
Capacity | 500kg/h | |
In/Out Temp. | +5℃ to -15℃ | |
Freezer Temp. | -35℃ | |
In/Out Time | 20-90min | |
Refrigerant | R404A | |
Consumption | 90kw | |
Freezing Container Thickness | 150mm | |
Product Height | ≤100mm | |
Belt Width | 2500mm | |
Product Input Conveyor/Output Conveyor | 1000/800 mm | |
Water Input Pressure | ≥3 kg/cm2 | |
Freezer Power | 15.4 KW | |
Freezer Size（L*W*H） | 13800×3000×2500mm | |
Freezer Body Material | Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm | |
Main Electric Brand | Schneider(France) | |
Belt and Speed | Food-grade stainless steel mesh belt; Frequency conversion stepless speed regulation | |
Slide Track Material | Ultrahigh molecular polyethylene material. | |
Internal Structure | All made of 304 Stainless Steel Material, Argon arc welding | |
Evaporator | Effective from large aluminum finned tube set, stainless steel panel stent | |
Fan and Motor | Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption | |
